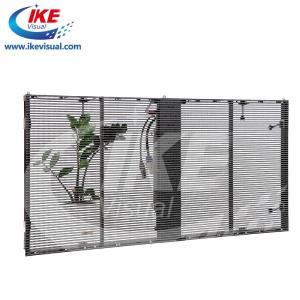

P3 Transparent LED Display For Window Glass Billboard With IP65 Protection

Brand Name : IKE Visual

Model Number : Shine O-3

Certification : CE,RoHS,FCC

Place of Origin : China

MOQ : 5SQM

Price : 953$/㎡

Payment Terms : T/T, Western Union

Supply Ability : 500PCS/Month

Delivery Time : 21days

Packaging Details : Flight case,Plywood case

color : full color

Pixel Pitch : p3

Brightness : 4500nits

Control system : novastar

LED chip : 3 in 1 smd

waterproof : IP65

refresh rate : 1920hz

Transparency : 50%

Contact Now

P3 Transparent LED Display For Window Glass Billboard With IP65 Protection
Overview
Quick Details
Pixel Pitch:
X: P3.90625mm ; Y: P7.8125m
Color:
Full color
Panel Size:
500*1000mm
Applications:
Stage,trade show,retail shop,indoor outdoor
Place of Origin:
Guangdong, China
Model Number:
Shine O-3
Brand Name:
IKE Visual
Product name:
Transparent LED display
Brightness:
4500nit
LED chip:
3 in 1 smd
Life span:
100000 Hrs
Scan mode:
1/8S
Pixel density:
32768 px/smq
Control system:
Novastar
Weight:
17.9kg/sqm
Type:
led number display
  • High transparency
  • Stable and Fast Installation
  • Fixed and Rental Application
  • Energy Saving and Waterproof
  • Customized cabinet size and art-frame

Product Description
1. Transparent LED screen including indoor type and outdoor type. They are a bit different design. Here below we only introduce you outdoor type.
2. The Maximum brightness is around 6000 cd/m2
3. It should be fixed installed outdoor, for advertising.
4. It is transparent, the light transmittance reach 25~68%. Not hiding the image back the LED screen.
5. The cabinet size support W500*H1000 and W500*H500mm.

Feature:
1. High Transparency and Concise:68-80% transparency rate among different pitches; hidden cable design looks clean and concise; Variable brightness options for day and night enviroment.
2. Slim, Light Weight and Quiet:35mm-45mm thickness;14 kg/m²; Available to attach onto glass wall directly.
3. Special Emitting Angle:Lighting from tube side emitting; brightness and color are penetrated via the glass effect; Embedded-In SMD technology, avoid to be knocked off during transportation and installation.
4. Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.

P3 Transparent LED Display For Window Glass Billboard With IP65 Protection

P3 Transparent LED Display For Window Glass Billboard With IP65 Protection

We have CE ROHS FCC.
Specification
Brightness 1500 Nits/4500 Nits 1500 Nits/6000 Nits 1500 Nits/6000 Nits 1500 Nits/6000 Nits
Density 32768 Pixels/㎡ 18432 Pixels/㎡ 12288 Pixels/㎡ 9216 Pixels/㎡
Transparency 50% 65% 65% 75%
Refresh Rate 1,920Hz 1,920Hz 1,920Hz 1,920Hz
Scan Mode 1/8 Scan 1/4 Scan 1/4 Scan 1/3 Scan
Panel Size W1000mm*H500mm W1000mm*H500mm W1000mm*H500mm W1000mm*H500mm
Customized Available
Weight 6.5 kg/per panel 6.5 kg/per panel 6.5kg/per panel 6.5kg/per panel
Viewing Angle 120. 120. 120. 120.
IP Degree IP 40/IP65 IP 40/IP65 IP 40/IP65 IP 40/IP65
Working Voltage DC 5V DC 5V DC 5V DC 5V
Input Voltage AC 100-240V AC 100-240V AC 100-240V AC 100-240V
Indoor Power Consumption 800W /㎡
/ 330W/㎡		 600W /㎡
/ 200W/㎡		 600W /㎡
/ 200W/㎡		 600W /㎡
/ 200W/㎡
Outdoor Power Consumption (Max./Avg.) 600W /㎡
/ 200W/㎡		 800W /㎡
/ 330W/㎡		 800W /㎡
/ 330W/㎡		 800W /㎡
/330W/㎡
Working Temperature
 -40~50℃ -40~50℃ -40~50℃ -40~50℃
  • Good after sold service

P3 Transparent LED Display For Window Glass Billboard With IP65 Protection
